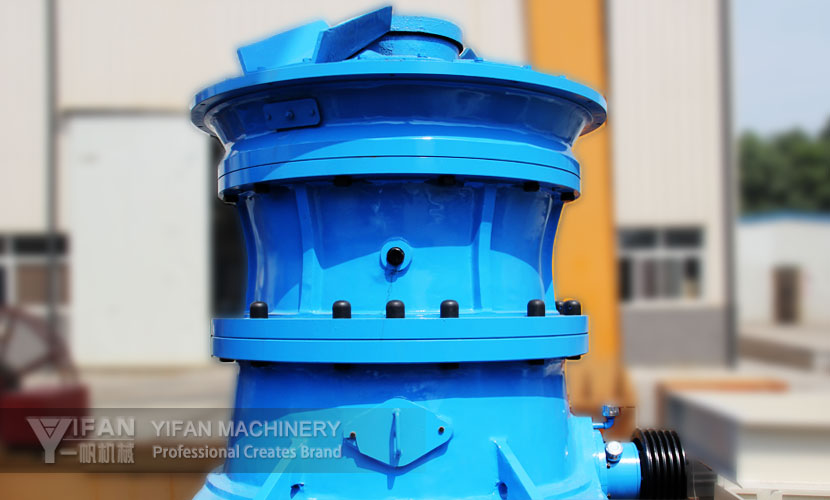

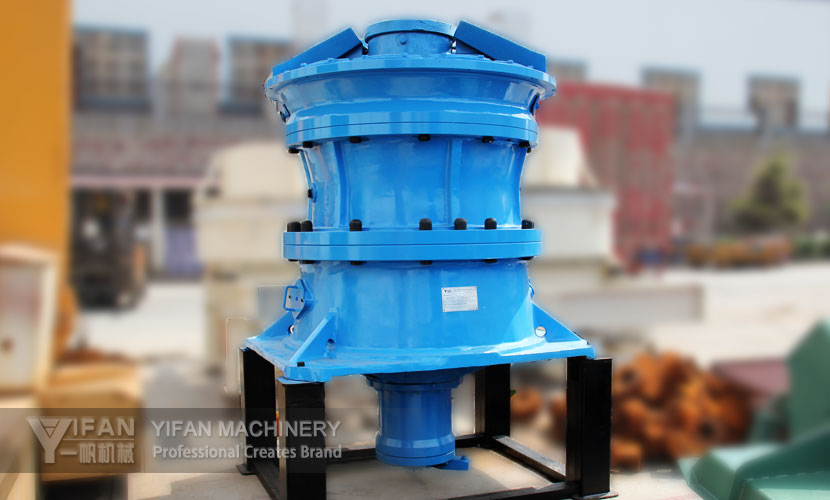

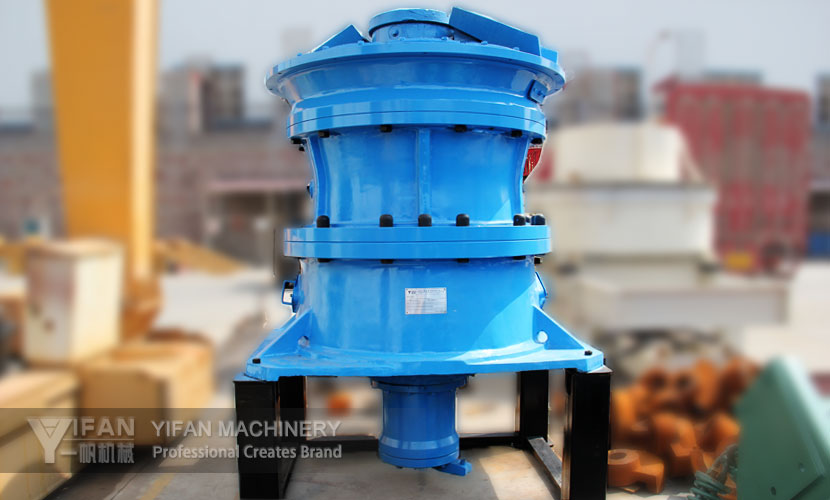

CCS Series Cone Crusher

Type:Intermediate crusher Feed Size:38mm-500mm

Capacity:65-1809t/h

Materials:Iron ore, copper ore, slag, pebble, quartz, granite, basalt, dolerite, etc.

Applications:Metallurgical, aggregate, building material industry, etc.

We're here to help:

Easy ways to get the answers you need.

Get price

OVERVIEW

CCS series hydraulic cone crusher adopts the most advanced crushing technology in present world. It has advantages like high reliability, high crushing efficiency, low operation cost and excellent product shape. It is widely used in mining and sand aggregate industries to crush hard ores and rocks. Moreover, it can be used for secondary crushing, fine crushing and sand making.

FEATURES

1. Equipped with different crushing cavities, CCS hydraulic cone crusher can have large capacity and meet different customers’ requirements.
2. Laminated crushing function makes end products have better shapes.

TECHNICAL DATA

CCS Series Secondary Cone Crusher:

Model
CCS831T
CCS837T
CCS848T
CCS855T
Moter power(kw)
90
160
250
315
Stroke(mm)
16-25
18-36
18-40
18-40
Max lift during maintenance(kg)
1850
4750
8500
14200
Total weight(kg)
7500
12000
22500
36300

CCS Series Tertiary Cone Crusher:

Model
CCS831
CCS837
CCS848
CCS855
CCS865
CCS887
Moter power(kw)
90
160
250
315
520
600
Stroke(mm)
16-25
18-40
25-40
25-45
30-50
30-50
Max lift during maintenance(kg)
1650
2850
5150
8600
15600
23000
Total weight(kg)
5700
9500
17500
28000
53000
75000

The Capacity of CCS Series Cone Crusher:

Model
Type of Cavity
Max Feeding Size(mm)
Closed side(mm),Capacity(t/h)
22
25
29
32
35
38
41
44
48
51
54
60
64
70
CCS831T
EC
240
85
88-125
95-135
102-165
110-135
125








C
200
70-85
75-110
85-120
95










CCS837T
EC
360

125
135-175
148-230
155-290
165-310
175-326
180-330
195-300
200-255
210



C
300
105
115-145
125-195
130-250
140-270
150-285
160-295
165-260
180





CCS848T
EC
450




252-310
265-358
185-450
300-532
323-586
338-516
355



C
400


215-265
225-306
243-320
259-425
272-495
285-456
298-410
310-385




CCS855T
C
500





290-380
325-410
350-555
655-685
383-753
396-795
432-860
450-785
495-620
Model
Type of Cavity
Max Feeding Size(mm)
Closed side(mm),Capacity
4
6
8
10
13
16
19
22
25
32
38
44
51
57
64
70
CCS831
EC
135



45-65
52-75
58-90
65-100
70-110
75-116
78-120






C
90



40-55
43-78
48-88
52-96
55-103
58-108
65-115






M
50

32-50
36-58
38-65
42-68
50










F
38
25
27-45
29-50
32-55
35-48
40










CCS837
EC
200




65-117
72-140
75-152
80-162
85-180
95-206
110-215





C
145




58-128
66-132
68-136
72-153
80-168
88-182
92-162





M
115


63
53-85
55-113
62-136
66-148
70-168
75-173
85-160






F
70



66-102
72-115
76-128
81-142
85-126
95







CCS848
EC
215





116-210
125-285
136-303
148-325
172-350
182-396
195-368




C
175




105-186
112-206
120-296
132-325
143-331
165-359
174-343
186-311




M
110




124-195
138-264
146-293
155-310
164-330
175-295
195-255





F
70



95-165
108-187
121-203
132-224
141-238
150-252
162-223






CCS855
EC
275





168-263
186-315
205-396
223-452
248-527
272-589
290-638
310-489



C
215





162-285
175-323
195-428
212-486
235-554
253-620
278-530
298-365



MC
175





152-275
166-361
108-415
198-463
215-520
235-486
265-350




M
135





185-302
198-396
214-453
232-495
265-472
290-395





F
85




175-258
195-309
213-366
235-384
256-416
285-423
325





CCS865
EC
300







430-541
458-781
522-891
577-981
632-1078
696-1188
751-1282
815-1391
870-1225
C
240






392-552
418-672
445-833
507-950
561-1050
614-1149
676-1266
730-1366
791-1317
845-1200
MC
195






367-415
392-641
417-789
475-900
525-995
575-1089
634-1199
683-1295
742-1265
792-1137
M
155






386-529
413-682
439-786
501-896
553-991
606-1085
668-1195
720-1280
782-1173
835-1032
F
90




350
372-586
400-655
427-699
454-744
516-848
571-797
626-721




CCS887
EC
370








463-697
528-1020
584-1199
639-1314
704-1447
759-1561
824-1695
880-1809
C
330








521-733
594-1047
657-1158
720-1268
792-1397
855-1507
928-1635
991-1371
MC
260







522
556-790
634-1012
701-1198
767-1311
845-1445
912-1558
989-1353
1080
M
195







550
566-939
646-1070
713-1183
782-1296
861-1427
928-1464
998-1254

F
100




387-477
418-663
499-712
479-760
510-809
581-863
642-822






Note:
The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness material and bulk density with 1.6x103kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
