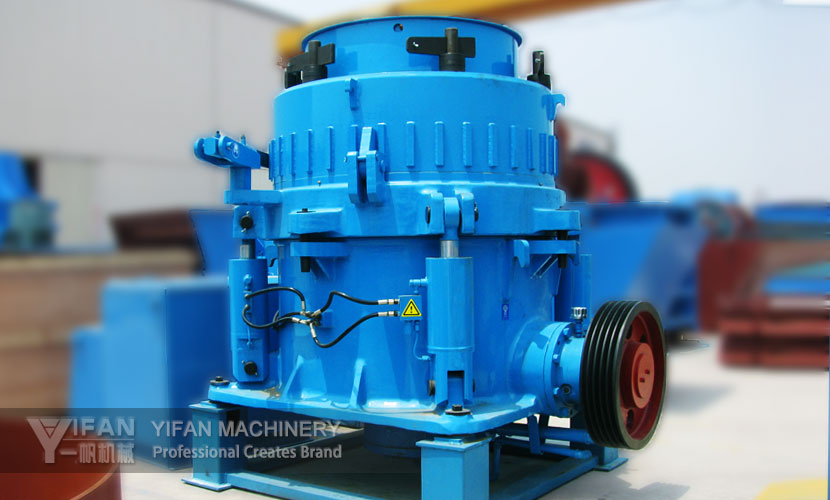

CCH Hydraulic Cone Crusher

Type:Intermediate crusher Feed Size:60mm-360mm

Capacity:40-560t/h

Materials:Iron ore, copper ore, slag, pebbles, quartz, granite, basalt, dolerite, etc.

Applications:Mining, metallurgy, construction, highway, railroad, water conservancy, etc.

We're here to help:

Easy ways to get the answers you need.

Get price

OVERVIEW

CCH series hydraulic cone crusher is designed and manufactured on the basis of absorbing world advanced crushing technology. It is widely used in metallurgy, aggregate, and building material industries. It is suitable for crushing various hard ores and rocks.

FEATURES

1. Reasonable structure, developed crushing principle, advanced technical data, reliable work and low cost;
2. Strong crushing ability, high efficiency and large capacity;
3. Reliable hydraulic system and effective overload protection;
4. Optional crushing cavity can improve the material size range.
5. Hydraulic adjustment and hydraulic clean cavity can improve automation degree greatly.

TECHNICAL DATA

Model
Type of Cavity
Max Feeding Size(mm)
Discharge Range(mm)
Motor Power(kw)
Capacity(t/h)--open circuit, closed discharge(mm)
9
13
16
19
22
26
32
38
51
63
76
89

CCH639
C
160
22-33
75-90




120
130
150





M
130
13-26

65
85
100
120
130






F
50
9-19
40
60
80
90








CCH651
EC
260
26-51
185-200





250
290
340
395



C
220
19-51



182
209
236
279
334
365



M
150
16-38


125
140
165
220
275
330




F
80
9-22
70
90
115
130
150







CCH667
EC
315
38-24
250-280







555
649
766


C
230
26-64





366
430
468
629
657


M
205
22-52




266
299
348
393
451



F
180
16-38


188
212
234
267
305
337




CCH684
EC
450
38-89
400







890
1179
1380
1475
1566
C
350
32-76






800
850
1100
1288
1398

M
320
26-63





612
735
815
990
1137


F
268
19-52



376
412
500
620
725
867




Technical Data of the Short head hydraulic cone crusher :

Model
Type of Cavity
Max Feeding Size(mm)
Discharge Range(mm)
Motor Power(kw)
Capacity(t/h)--open circuit, closed discharge(mm)
3
5
6
9
13
16
19
22
26
32
38

CCH639D
C
70
6-19
75-90


59
68
96
110
130




M
51
5-16

45
59
68
96
110





F
35
3-13
30
45
50
65
90






CCH651D
C
89
9-22
185-200



100
120
175
210




M
70
6-16


105
130
160






F
54
5-16

80
90
110
135
160





CCH667D
EC
133
13-26
250-280




280
310
340
370
390


C
133
10-26



210
280
31
340
370
390


M
89
6-19


130
168
215
260
290




F
70
6-13


130
168
215






CCH684D
EC
203
16-26
400





510
600
630
680


C
178
13-26




455
488
552
600
620


M
133
10-19



355
420
460
530




F
105
6-16


220
310
375
428






Note:
1.The capacity is total tons per hour passing through crusher at open circuit when crushing medium and below hardness material and bulk density with 1.6x103kg/m3. Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
2.CCH651(D)and CCH684(D)standard configuration includes discharging opening of hydraulic locking and hydraulic motor adjustment, and you can choose CCH639(D),CCH651(D)as matching products.
