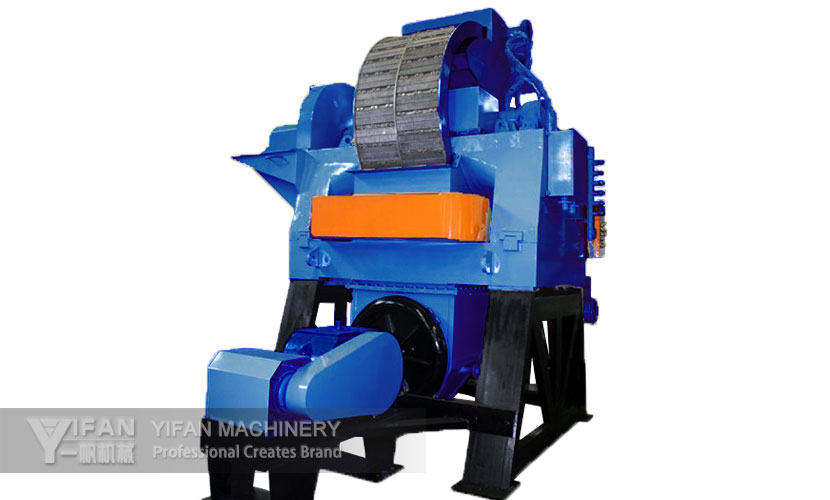

LHGC Magnetic SeparatorJ Jaw Crusher

Type: Feed Size:

Capacity:

Materials:

Applications:Wet classification of many weak magnetic metal mines

We're here to help:

Easy ways to get the answers you need.

Get price

OVERVIEW

The model selection of this equipment depends on your production quantity. If users require better ore dressing index, please lower pulp quantity properly. The capacity of dry ore will be half of the normal amount when selecting equipment for non-metallic minerals.

FEATURES

1. Advanced oil-forced cooling system can solve the problems like inconvenient instrument assembling, environment pollution, fouling blocking, insulation reduction, etc.
2. Easy installation, convenient operation and maintenance;
3. Excellent moisture proof, dust proof and anti-corrosion performance;
4. Large heat dissipation area, fluent oil-way and high efficiency radiating;

TECHNICAL DATA

type
LHGC-500
LHGC-750(Z)
LHGC-1000(Z)
LHGC-1250(Z)
LHGC-1500(Z)
LHGC-1750(Z)
LHGC-2000(Z)
LHGC-2500(Z)
LHGC-3000(Z)
rated background field strength (T)
1(0.6)constant current continuous adjustable
The excitation  power rating (kw)
≤10(6)
≤13(8)
≤17(10)
≤19(12)
≤27(15.5)
≤37(23)
≤42(29)
≤57(37)
≤74(48)
Dry mineral processing (t/h)
0.1~0.3
0.1~0.5
3.5~7.5
10~20
20~30
30~50
50~80
80~150
150~250
Pulp through capacity (m3/h)
0.25~0.5
5~10
12.5~20
20~50
50~100
75~150
100~200
200~400
350~650
Magnetizing current (A)
63
72
85
92
105
124
130
153
185
Feed density (%)
10~40
Feed size
-1
-1
-1.2
-1.2
-1.2
-1.2
-1.2
-1.2
-1.2
Rotate speed (r/min)
3
the outside diameter of swivel (mm)
Φ500
Φ750
Φ1000
Φ1250
Φ1500
Φ1750
Φ2000
Φ2500
Φ3000
Motor power (kw)
0.37
0.75
1.1
1.5
3
4
5.5
11
18.5
plusing frequency of motor (kw)
0.37
1.5
2.2
3
3
4
7.5
11
18.5
stroke (mm)
0~30(machenical adjustment)
jig frequency of pulse (Beats / min)
0~300(variable frequency and adjustable)
Exciting voltage (DCV)
0~409(280)(varying with the electric current)
Mine water pressure (Mpa)
0.1~0.2
0.1~0.2
0.2~0.4
0.2~0.4
0.2~0.4
0.2~0.4
0.2~0.4
0.2~0.4
0.2~0.4
Mine water (m3/h)
0.65~1.4
1.4~2.5
8~12
12~20
20~30
30~50
50~100
100~150
150~250
weight (t)
2(1.5)
5(3.5)
9(7)
14(11)
24(20)
35(28)
50(39)
105(83)
150(135)
The largest part weight (t)
0.3(0.25)
0.6(0.5)
2.3(2)
4(3.5)
5(4)
11(9)
16(13)
23(18)
24(19)
Dimension L×W×H (mm)
1800×1400
×1320
2000×1360
×1680
2700×2000
×2400
3200×2340
×2700
3600×2900
×3200
3900×3300
×3800
4200×3550
×4200
5800×5000
×5400
7600×6500
×7200
Drum screen matches
----------
YTS-810
YTS-810
YTS-810
YTS-810
YTS-1415
YTS-1415
YTS-2019
YTS-2529
YTS-1210
YTS-1210
YTS-1210
YTS-2019
YTS-2019
YTS-2529
